Words and pictures by Andrew Middleton.

Onca Off-Road are well-known in the industry as builders of extreme Jeeps, and as the go-to place for heavy-duty conversions to every kind of Land Cruiser you can think of. Now, they’ve finally completed their R&D work on armour for the Hilux Revo…

Back in 1991, brothers Lee and Len Nel found themselves in a situation fairly common to 4×4 enthusiasts. Standard vehicles weren’t suited to extreme off-road and overlanding, yet, back then, the market for accessories was still relatively small. The brothers started manufacturing their own parts using skills learned in the mining and fabrication industry to get them ahead of the game. It didn’t take long before competitors stood up and took note, and Onca 4X4 was born in 2003. Today, Onca not only manufacture their own premium products in South Africa, but import some of the best componentry that the USA has on offer.

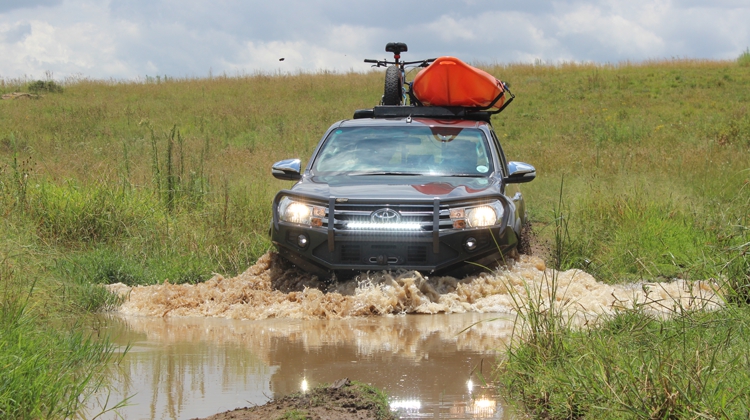

Though Onca have several show cars, the Hilux has always been a bread-and-butter product in the 4×4 industry, so there was plenty of incentive to build an impressive show vehicle from the latest Hilux 2.8 GD-6 Revo. Here we’ve short-listed the accessories fitted to the vehicle, racking up a total build cost of R150 000 or so; but that, of course, includes the super-trick Icon suspension components and billet aluminium winching/ recovery accessories − which are US imports. You could also mention the fender flares, great for protecting these vulnerable areas from trail rash, and a few high-end touches like the Rigid Industries work lights built into the Adventure frame. One could build a similar looker for a lot less, but would you want to?

With this build, the large Mickey Thompson mud-terrains on bead lock rims weren’t going to fit into the standard arches, hence a decent lift was required. This is nothing in the USA, home of radical 4×4 builds, so the boltin Icon steering componentry, springs and shocks meant that there was the minimum of tweaking to get steering and roadholding perfectly set.

What is worth knowing about Onca’s locally developed products is that they are not rushed to market. The Hilux Revo, the bullbar, rear bumper and rock sliders have all undergone a long phase of development, prototyping and testing. Now, finally, Onca 4×4 have market-ready armour which performs as it should and meets exacting quality and safety standards.

For the sake of safety, all Onca bull bars are built under strict Australian Design Rules (ADR). This means that their products meet the Australian government’s national safety standards, including crash safety. Built into each bull bar are special airbag crumple zone brackets which allow the mounts to flex and absorb impact energy, thus aiding airbag deployment and occupant safety.

The bull bar also caters for cooling needs, with large vents that are tapered at the back to push air directly into the radiator and front mount intercooler. Despite the added air flow, strength has not been compromised: two 10 000lbs recovery points remain, as well as two jacking points.

The rear bumpers are equally strong, and also include two jacking points and two 10 000lb recovery points – here being made extra ‘cool’ with Factor 55 Recovery pro-link shackles.

For the rock sliders, large 76mmx3mm steel tubing was used in an effort to reduce resistance between the sliders and the ground. As is proper, there are no protruding parts, and there are three substantial chassis mounting brackets on each side.

The process of building an Onca-manufactured product starts on the computer with the latest CAD software to ensure an accurate fit to the dimensions of the specified 4×4. From there, the steel is machined and lasercut to shape before the welding and grinding. All steel products are sandblasted, before being powder-coated with highly resilient ‘Ferrotex’ – a rough black coating designed to fend off scratches and corrosion.

Overall, the design and build quality speak for themselves. From the pristine factory, to the finished item, you know you’re getting a quality product that not only looks the part, but is designed to be abused for years to come.


Onca Revo Namib Edition RX

Price: R19 950



Bull bar



• Mild steel laser cut construction

• Winch compatible

• Patented design airbag crumple-zone mounting system to suit Australian Design Rules

• High volume airflow vent system for optimal airflow to radiator and intercooler

• High lift jacking points

• Front tow hitch receiver point

• Spotlight mounting brackets

• Standard Toyota Factory driving lights mounts


LED Rigid Industries 20″ SR series





LED light



• Billet aluminium construction

• Made in USA

• Lexan lens, 20 LEDs

• Spot/flood combination beam

• 50 000+ hour lifespan

• Extruded alloy housing

• Watts: 75.9

• Amp Draw: 5.5

• Raw Lumens: 7500

• Lux @ 10m: 1750

• Beam Distance: 837 m

• Peak Beam Intensity: 175000 cd


Smittybilt X20 12 000P Comp Series

Price: R18 977



Winch



• IP67 Water resistant

• Plasma rope

• Wireless and wire remote

• Competition aluminium fairlead

• 6.6HP motor

• 12 000Lbs (5 454kg) single line

• Gear ratio: 265:1

• Weight: 30.4kg

• Overall Dimensions: (LxWxH) 566x137x239mm


Factor 55 recovery pro-link





Recovery



• Billet 6000 Series aluminium

• Made in USA

• 9500lbs (4300kg) rated

• Factor 55 Pro-link winch shackle mount replaces conventional winch hook and is more secure. Made from aluminium, it requires no splicing on plasma rope and features a titanium double shear-pin design


Onca Adventure Frame





Load bin frame



• D76 cold rolled mild steel tubing (CNC mandrel bent)

• Standard colour texture black powder coating

• This is a newly developed custom product which can be manufactured to customer specifications.


Onca full replacement bumper





Rear bumper

Price: R9 200



• Mild steel laser cut construction

• Removable Tow Hitch to improve departure angle.

• High lift jacking points

• Bow shackle recovery points

• Hitch wiring at extra cost


Monster Swivel Recovery Hook





Recovery hook



• Billet aluminium CNCmachined

• Made in USA

• Rated to 10 000lbs(4500kg) each


Onca stage 1 and 2 front protection plates

Price: R6 286



Protection plates



• 4mm mild steel laser-cut plate

• Standard colour texture black powder coating.

• Protects front differential, oil cooler pipes, gearbox/ transfer case

• CV boot and A-arm protection – R3074

• 4mm laser-cut mild steel

• Protects front A-arms and CV boots


Onca Extreme Rock Sliders

Price: R9 500



Rock sliders



• Double tube construction D60x3 mandrel bent cold rolled steel tube.

• Three chassis mounting points on each side

• Smooth underside for unobstructed sliding over terrain


Icon Vehicle Dynamics





Suspension



• Icon Vehicle Dynamics coil and strut (front)

• Icon Vehicle Dynamics billet aluminium upper control arm

• Icon Vehicle Dynamics rear shocks

• Made in USA

• The Icon gas shock absorbers are a premium American suspension brand tested in the Baja Desert Race and adjusted for South African conditions. While the front shock absorbers are ride-height adjustable, the rears utilise a remote reservoir to aid cooling and reduce heat fade due to the higher unsprung weight of the live axle. Inquire about the pricing…
