Total Length: 4800 mm
Body Length: 3800 mm
Width: 1920 mm
Height closed: 2050 mm
Height open: 2750 mm
Body construction: Composite honeycomb panels, with aluminium structure
Finishing: Aluminium or Bamboo (according to client spec)
Axle type: 1 x 2 000kg rated independent suspension
Suspension type: 2 coils and 4 shocks
Chassis: 3CR12 Stainless steel
Wheel size: 17-inch 265/65 all-terrain tyres (upgrade available to client spec)
Net weight: 920 kg
Payload: 380 kg / 680 kg
GVM: 1300 kg / 1600 kg
Basic price: R249 000 Incl VAT
Equipment list standard:
- Gas geyser with hot & cold connection to all taps
- Slide-out for Fridge/Freezer [600 mm x 900 mm x 600 mm]
- Slide-out kitchen,
- 2 plate Dometic gas hop with storage beneath
- Extra-large washup basin with shower head that can be extended, and storage beneath
- Storage box with lid [1000 mm x 220 mm x 400 mm]

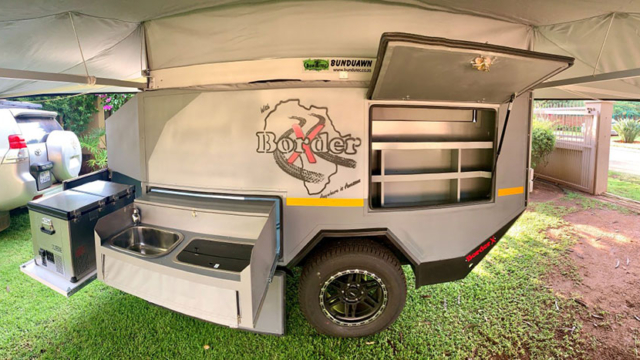

- Large outside kitchen [1580 mm x 900 mm x 350 mm]
- Fold down table
- 2 x 220V socket, 2 x 12V USB connection, 1 x 12V Merit Socket, 1 x 12V Cigarette socket
- Top shelve can be made to be accessible from inside
- Nose storage place for gas cylinder
- 1 x 75 litre water tank & 1 x 60 litre, with 2 pressure pumps.
- 4 caravan stabilizers
- 1 spare tyre mounted on unbacked hub
- Additional storage compartment accessible on right hand side [400 mm x 1000 mm x 750 mm]
- External Lighting
- 3 x dimmable LED lights (white/yellow)
- Inside Electricals
- 220V to 12V Victron charging system with Bluetooth connectivity
- 6 Way fuse box
- 220V Circuit breaker box
- 12V monitor system
- 1 x double 220V socket, 2 x 12V USB connection, 1 x 12V Cigarette socket
- 2 x LED lights
- Space for 2 x 105Ah batteries
- Beths (depending on layout):

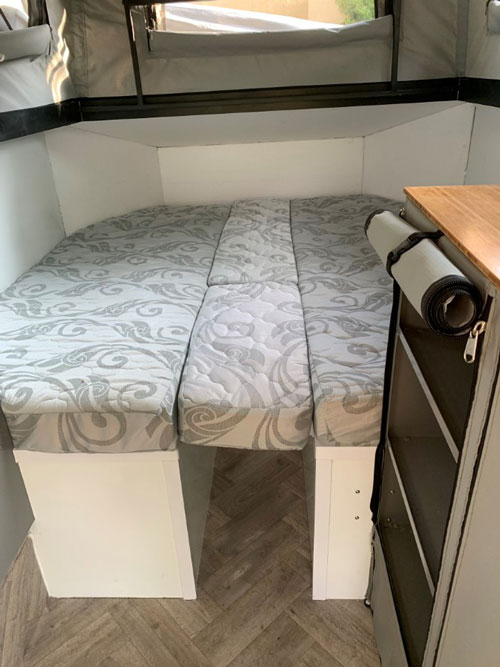

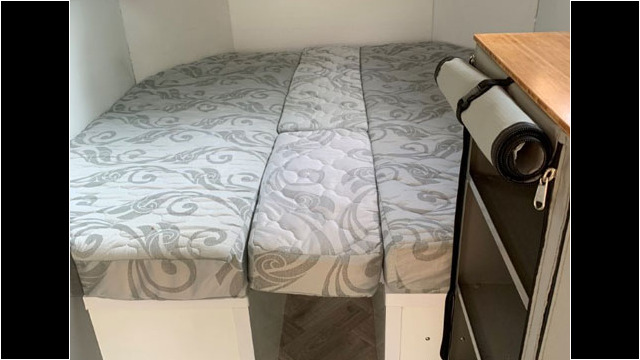

- Main bed [2000 mm x 1860 mm], with high quality 150 mm mattress
- OR
- 2 single beds [2000 mm x 750 mm],
- Optional kids beds [±1900 mm x 750 mm]
- Depending on layout option

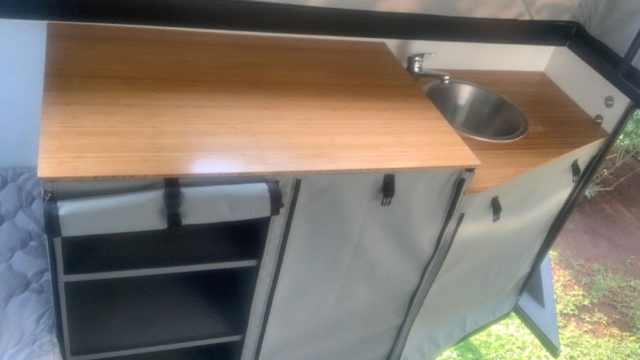

- Bamboo or Aluminium cupboards
- Shelving designed to take black ammo crates if required
- Can be adjusted to include hanging space
- Storage for Porta potty
- Basin

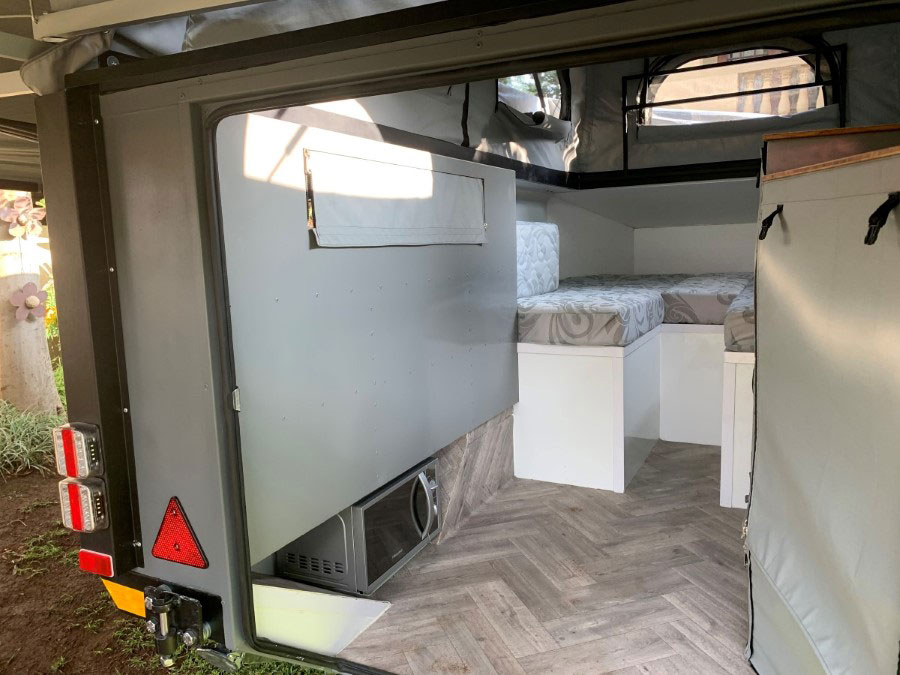

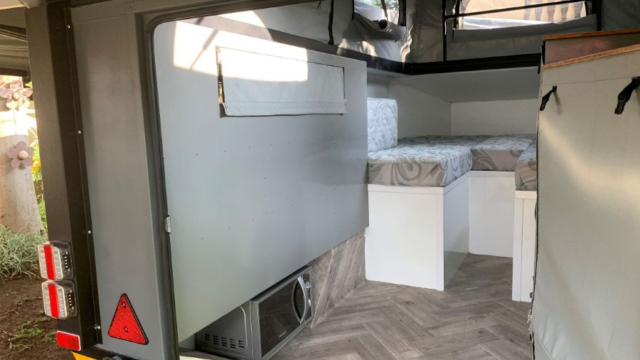

- Space for microwave inside caravan
- 1 x 1kg fire extinguisher
- Outside shower
Equipment list optional:

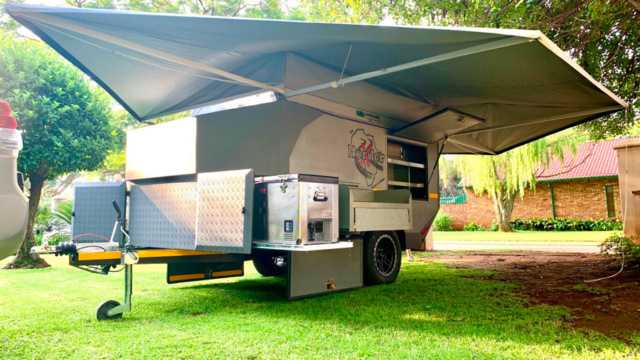

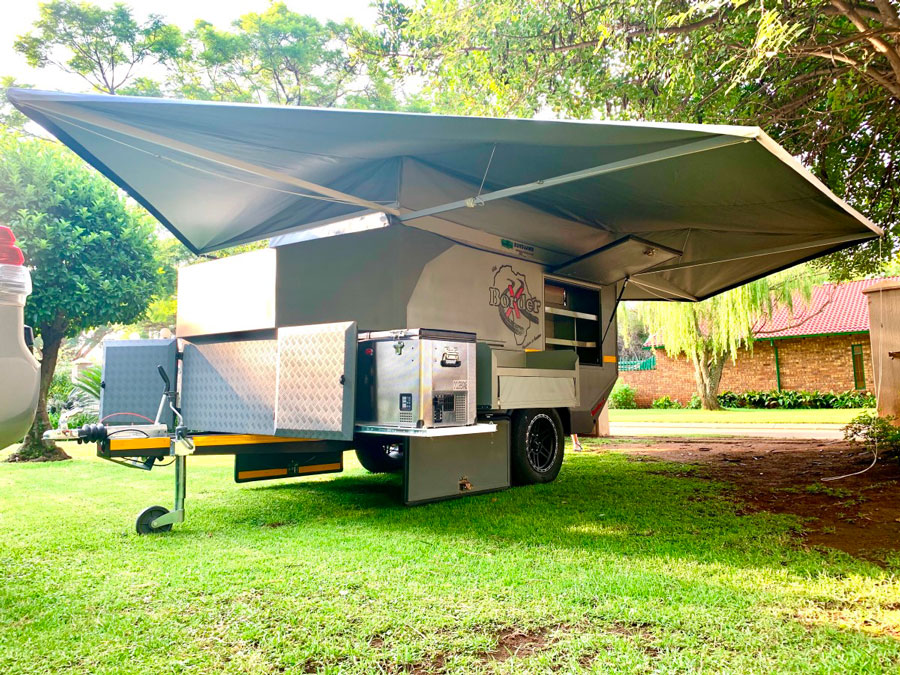

- Bundutec 360 awning, 7 tent poles and install.
- Side walls available: solid, windows and doors
- Draft skirt
- Nose protector cover
- Additional windows & blinds
- Fridges/Freezers
- 12V Victron monitor system with Bluetooth connectivity upgrade
- Solar panel with Victron MPPT Bluetooth enabled charger.
- Deep cycle batteries
- Ewiks movers
- 9 000BTU split aircon
- Victron inverter
- Upgrade to other spec tires and rims
- Fitting out of kitchen with foam cut-outs
- Safe/strong box
- Camping table
- Electrical lead
- Step 2 tier
- Porta potty
- Luxury cassette toilet (depending on layout)

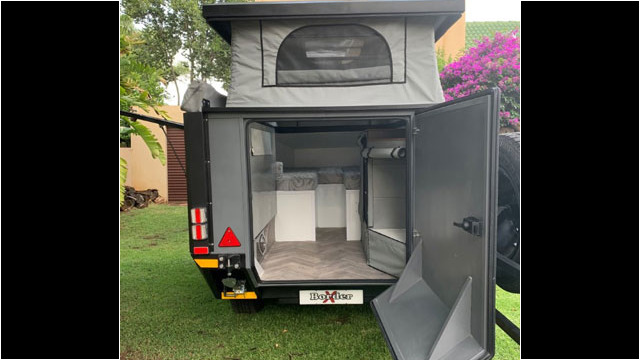

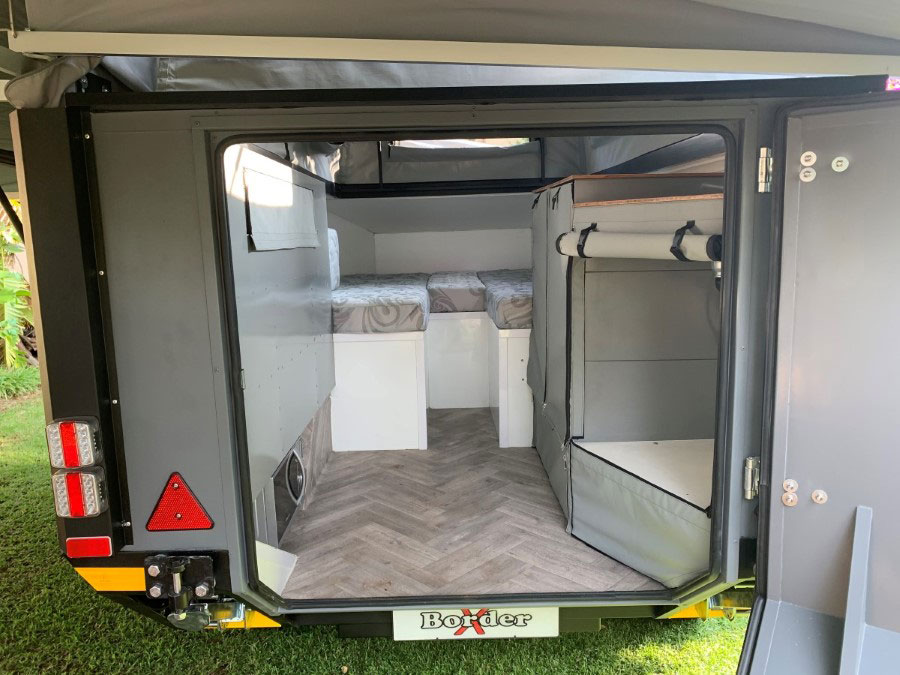

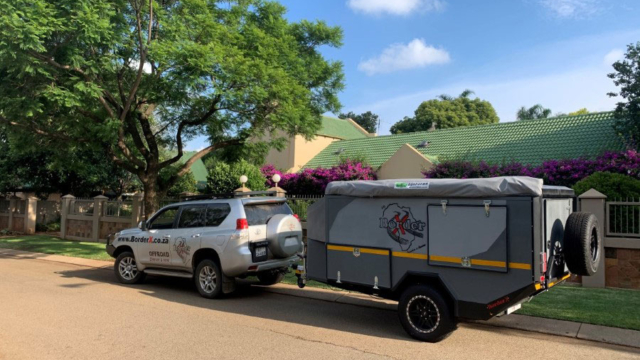

Have a look through the gallery for more pictures of the BorderX Extreme Caravan
