Steelmate TP-S9 Solar Powered TPMS External Sensor

Catalogue

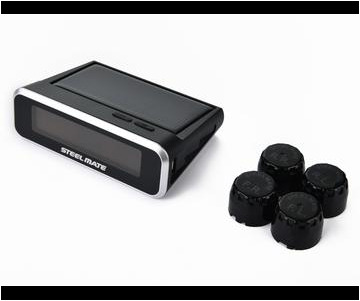

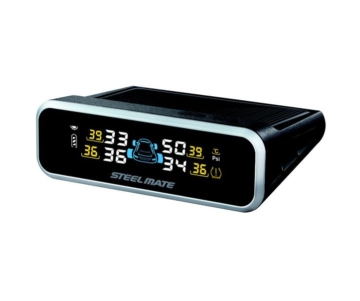

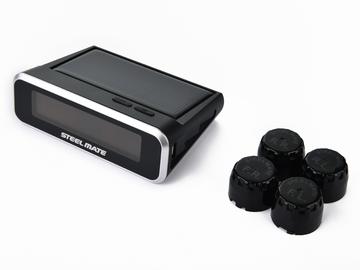

The TP-S9 tyre pressure monitoring system has a solar powered dashmount display in Colour and is supplied with four External sensors which displays the tyre pressures of all four tyres in BAR. The system monitors both tyre pressure and tyre temperature, and will alert the driver of leaks, punctures and over-heating (over 80 Degrees Celcius)

Ultra low pressure monitoring ideal for offroading- low alarm can be set to 0,9Bars

In addition, the alarm threshold of pressure can be set and adjusted by the driver.
The system can monitor tyre pressure
from as low as 0,9 Bars,up to 6.0 Bars, which suits a wide range of vehicles.
All sensors come pre-paired to the correct
wheel position and are labelled for easy installation.

Features Wireless transmission, no wire connection is needed. Intelligent sleeping mode for power saving. High temperature and low battery,visual and audible warning. Variable pressure unit (PSI or Bar). Long battery life (≥2 years)

Technical Specifications

External Sensor:

  • Long Life Battery
  • Operating Frequency: 433.92MHz ± 0.05MHz
  • Operating Voltage: 2.0~3.8V
  • Operating Temp.: -40°C~+105°C / -40°F ~ + 221°F
  • Battery Life: ≥2 years
  • Weight: 18g ± 1g

Display:

  • Operating Frequency: 433.92MHz ± 0.05MHz
  • Operating Voltage: 12 ± 3V
  • Operating Temp: -40°C ~ +85°C / -40°F ~ +185°F
Contact supplier below




Disclaimer: Although the information shown above is presented in good faith and believed to be correct at the time of publishing, SA4x4 makes no representations or warranties as to the completeness or accuracy of the information. SA4x4 has no liability for any errors or omissions in the content freely displayed. Please note that all the prices shown below are subject to change without notice. Due to the nature of imported equipment shown above, please understand that we as a South African market are very dependent on the Rand/ Dollar exchange rates.

SA4x4 encourages all patrons and users to check pricing of items shown online with vendors directly via our contact form.
