Superwinch 9500lb Synthetic Winch

Category:
Catalogue

5405
VIEWS

Introducing the world’s greatest value in winching: the Superwinch Tiger Shark. Packed with manufacturing secrets we’ve learned over the past 40 or so years, the Tiger Shark is a pulling machine built to get the job done. Here’s why the Superwinch Tiger Shark has become everyone’s favorite “just in case” winch: stainless hardware to avoid rust, powerful motors to pull from 9500-17500, strong galvanized wire cable or certified Dyneema synthetic rope. Get to know the Tiger Shark.

  • Certified Dyneema Synthetic Rope – Superwinch relies only on certified Dyneema synthetic cable. You’ll appreciate the saving.
  • No brake in drum – To keep synthetic cable damaging heat at bay, Superwinch engineers moved the brake into the motor.
  • High-end Hawse – CNC’d aluminum hawse is strong and better looking than cast versions
  • 2 Year Warranty
  • After-sales services and parts available.

Specs

Models: Tiger Shark 9,500 | Tiger Shark 9,500 SR (Synthetic)
Part Number: TS9500-12V / TS9500SR-12V (Synthetic)
Rated Line Pull: 9,500 lbs (4309 kg)
Motor: Sealed 5.2 HP Series Wound
Gearing: 3-Stage Planetary
Gear Ratio: 218:1
Solenoid: Weather Sealed Solenoid and Circuit Breaker Protected
Clutch: Pull and Turn, Ergo
Brake: Mechanical, Automatic Load Holding
Rope: Wire 8.3mm x 29m| Synthetic 9,5mm x 25m
Hook: Heavy Duty Clevis Pinned Latched
Fairlead: Heavy-Duty, Stainless Steel 4-Way Roller | Anodized Aluminum Hawse
Remote: 12′ Rubber Sealed Hand-held

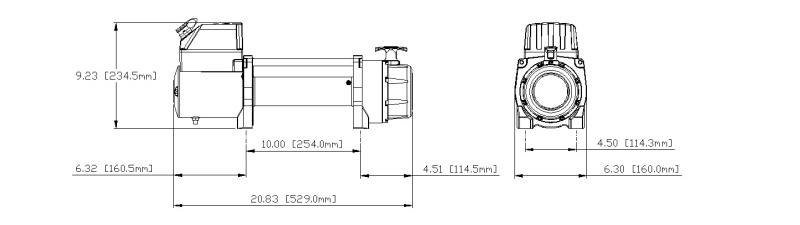

Dimensions: 529mm L x 160mm W x 234.5mm H
Drum Diameter: 63.5mm
Drum Length: 228.6mm
Installed Weight: 41kg | 26.7kg
Shipping Weight: 42kg | 28.6 kg
Warranty: Limited 2 Year Warranty
Line Pull: 0 lbs (0 kgs): 80 Amps Motor Draw/19 FPM (5.7 MPM) Line Speed
Line Pull: 9,500 lbs (4,309 kgs): 340 Amps Motor Draw/4 FPM (1.2 M/M) Line Speed
Lead Wires: 1.8m x 4 gauge 25mm²
